Expertly Built for Fuel Transfer Applications
Smith Pumps has been providing refined fuel and hydrocarbon pumps for more than 85 years, working closely with customers who depend on safe, reliable fuel transfer every day. Smith Pumps designs equipment that performs consistently across a wide range of operations, with flow rates from 2.5 to 250 GPM (9 to 946 LPM) for applications such as cylinder filling, refinery bulk transfer, storage tank service, and truck loading and offloading. From LPG and butane to diesel, gasoline, kerosene, fuel oil, light crude oil, and jet fuel, Smith Pumps delivers proven pumping solutions that operators trust in demanding fuel-handling environments.
Compatible Fluids:
- LPG / Butane
- Hydrocarbons
- Hydrocarbon Mixtures
- Diesel
- Gasoline
- Fuel Oil
- Light Crude Oil
- Kerosene
- Jet Fuel
Applications

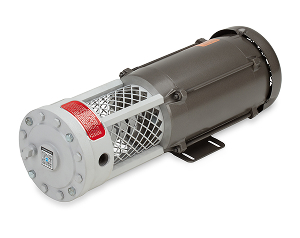

- Cylinder Filling

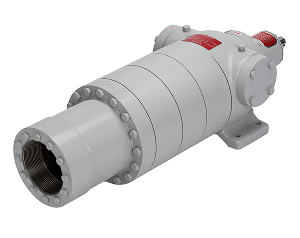

- High-volume Bulk Transfer
- Ground Pumps
- Truck Delivery
- ISO Containers
Operating Parameters/Approvals
Smith Precision Products Company’s Quality Management System is registered to meet the requirements of ISO 9001:2015 Certified by NQA. In addition, our refined fuel/hydrocarbon products comply with EU/UK approvals, including the PED, Machinery Directive, and ATEX/UKEX when applicable. LPG/Butane pumps are UL-listed.
Performance Specifications
Rated Flow Capacity:
2.5 to 250 GPM (9.5 to 946 LPM)
Temperature Range:
-80°F to +400°F (-62°C to +205°C)*
Maximum Allowable Working Pressure:
4 psiA to 500 psi (0.28 to 34 bar)*
Maximum Differential Pressure:
For liquids under 1 cP viscosity, general maximum differential pressure range between 50-125 psi (4-9 bar).
For liquids greater than 1 cP , maximum differential pressure (intermittent duty) up to 300 psi (21 bar).
Duty Cycle:
2 hours continuously at maximum RPM. For pumps operating for more than 2 hours, we recommend our heavy-duty “NSSA” option and operating the pump at ½ the maximum drive speed. Please contact our factory for the recommended pump model/motor combination.
*Contact our engineering department if your application requires a different temperature or pressure than listed above.
**All pumps are built for their intended liquid service and cannot be interchanged due to differences in materials of construction. Never use a pump for a liquid service other than specified.
100% Tested Before Shipment
All Smith pumps are tested three times before shipment under our ISO 9001 quality management system. Mechanical seals are tested for leaks, pump casings are pressure tested, and each pump is tested to verify flow performance before leaving the factory.
Smith’s proprietary mechanical shaft seal assembly allows every seal to be pre-assembled and factory-tested prior to shipment, whether for a new pump or as a spare. The result is faster installation, reduced downtime, and dependable sealing performance you can trust. Learn more about Smith’s mechanical shaft seal design.
Testing Criteria:
- Every mechanical seal is liquid tested to inspect for leakage.
- Casings in the pumps are pressure tested to 400 psi after assembly.
- Pumps are then liquid tested to meet pump flow rate expectations.
